| Machine Features | ||
| Machine Weight (gross) | kg | 56.000 |
| Machine Working Area | mm | 2.500 * 10.000 |
| Area Covered | mm | 6.000 * 16.000 |
| Table Loading Capacity | kg | 10.000 |
| X Axis Guide Type | Lineer | |
| Y Axis Guide Type | Lineer | |
| Cutting Feed (X, Y, Z) | m/min | 10 |
| Axis Motion Area | ||
| X Axis Movement | mm | 10.000 |
| Y Axis Movement | mm | 2.500 |
| Z Axis Movement | mm | 1.300 |

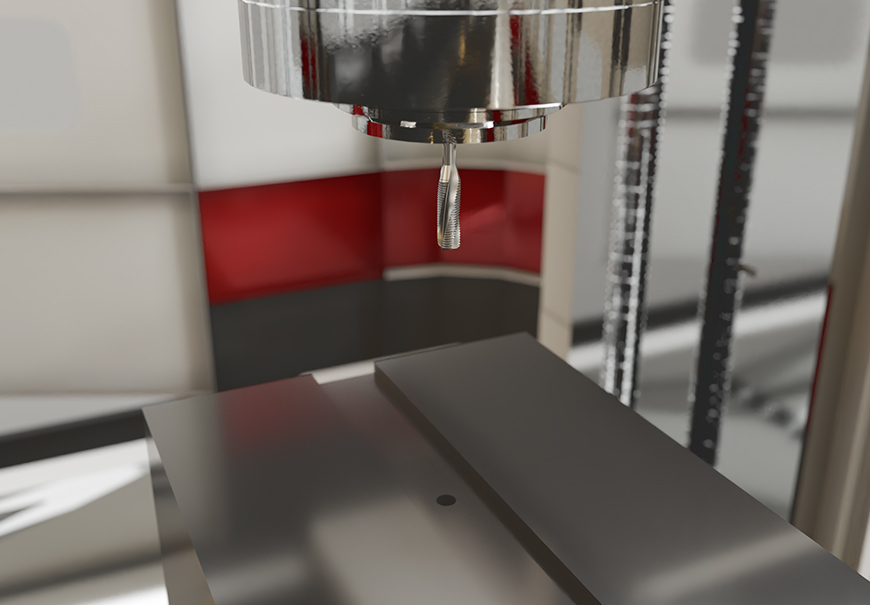

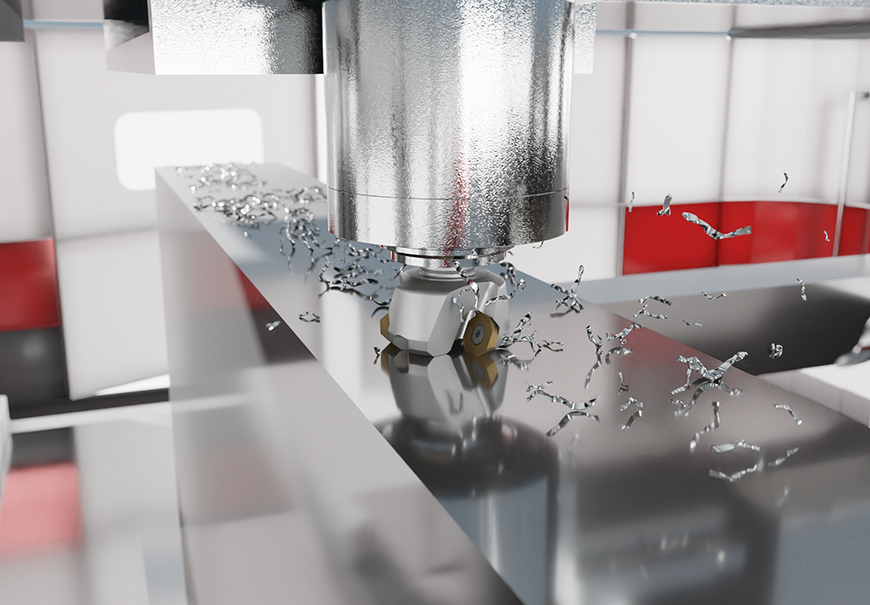

| Spindle | ||
| Spindle Motor Power | kW | 22 |
| Maximum Tool Diameter | mm | 125 |
| Maximum Tool Weight | kg | 18 |
| Spindle Conical Type | BT50 | |
| Spindle Turn | rpm | 8.000 |
Standard Accessories:
- BT50 8.000 RPM Spindle
- Syntech control unit
- Central automatic lubrication system

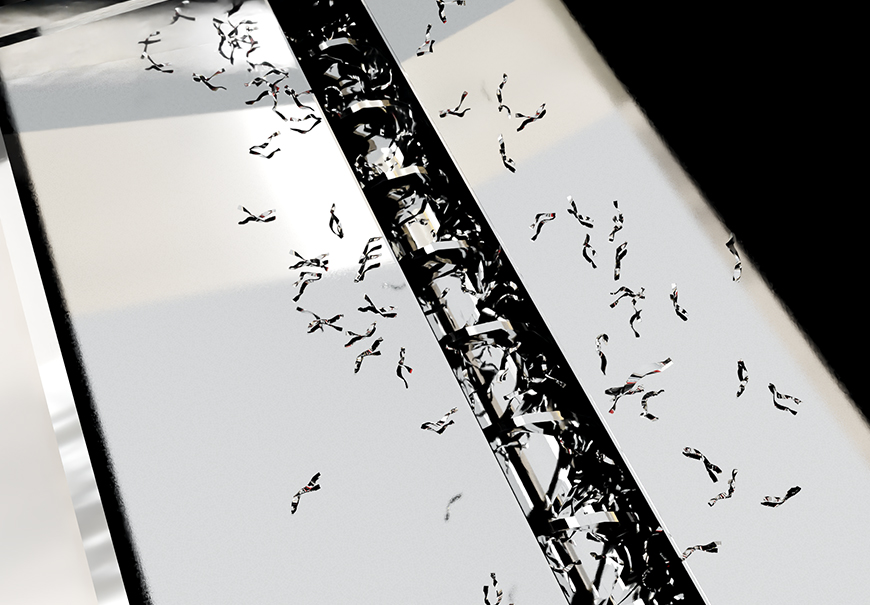

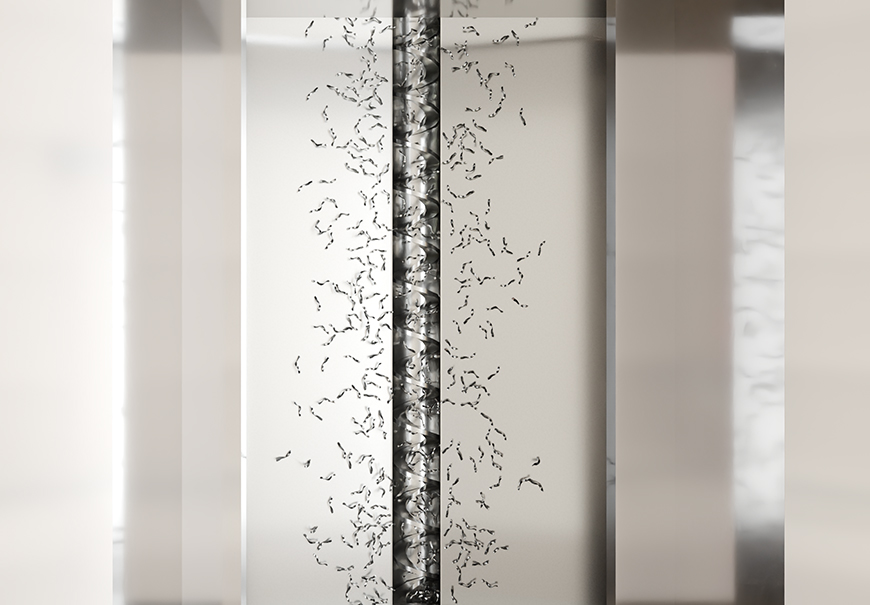

- Screw Type Chip Conveyor
- Electric Cabinet Cooling System

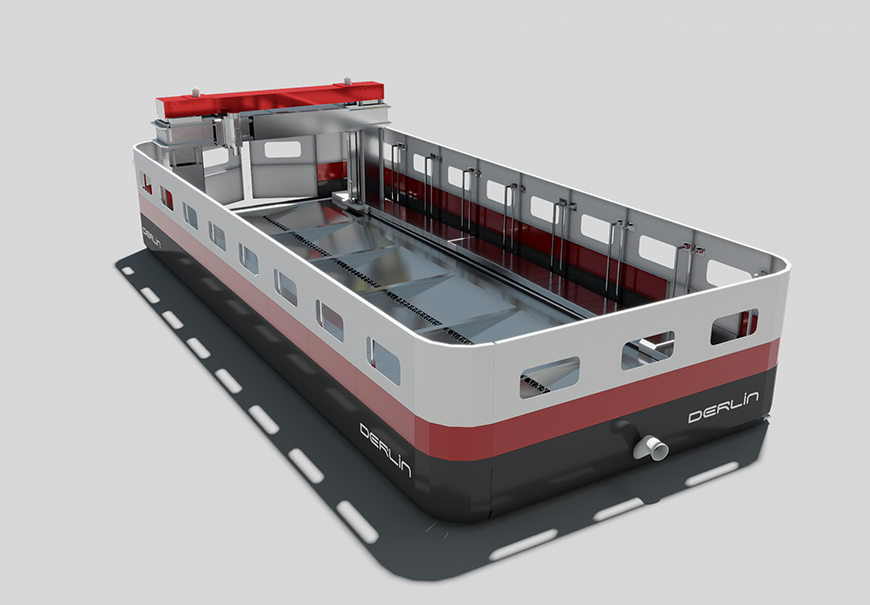

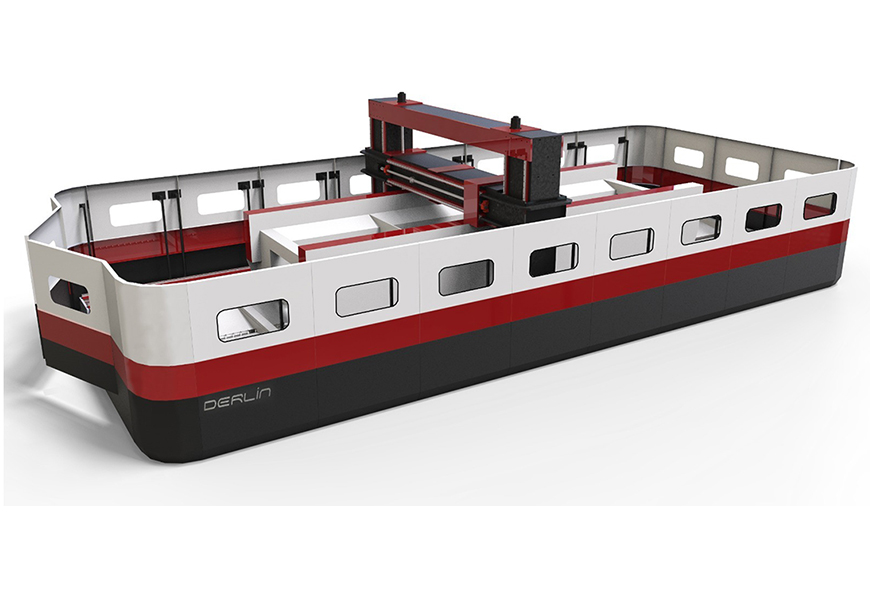

- Closed Case (Open Roof)
- Wireless Handwheel
- Tool Cooling System with Compressed Air

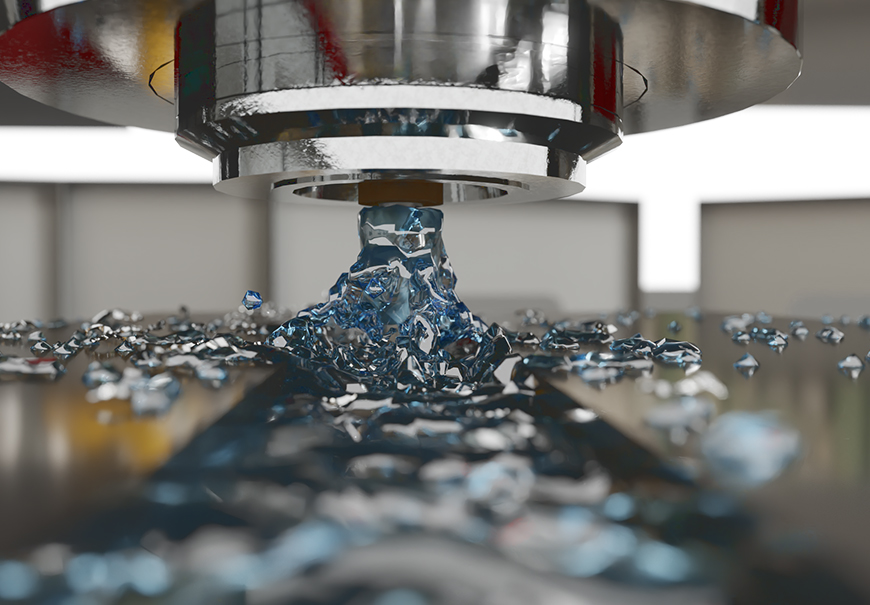

- Tool Cooling System with Boron Oil
- Air Gun
- Central Lubrication Unit
- Triple Warning Lamp
- Interior Lighting Lamp
- Coolant Tank
- Water Spray System
- 2 Years Free Periodic Maintenance (1 per year)
Optional Accessories:
- Divider
- Belt Type Chip Conveyor
- Control unit
- Mitsubishi
- Fanuc
- Siemens
- Delta
- Title Options
- 90° Head
- Extension Head
- 10.000, 12.000 RPM Direct Drive Spindle
- Magazine with 20, 32, 40 or 60 Set Capacity
- Boron Oil Gun
- Closed Ceiling High Frame
- Cabin Camera
- Operator Ladder
